Concealed fix roofing
Metlok 700® VG4
Product Overview

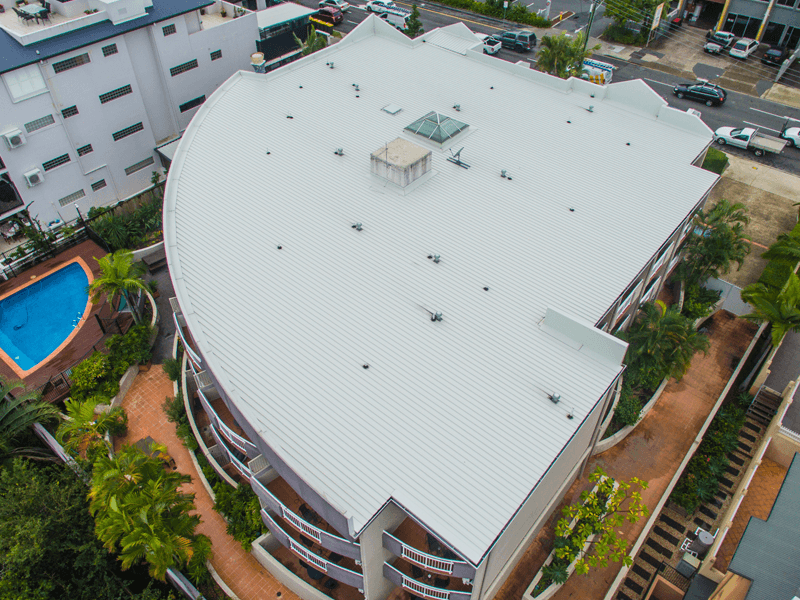

Metlok 700® VG4 is a concealed fix-clip roofing system. It stands apart for its thermal expansion and contraction properties and is ideal for long run roofing installations. A great rooftop solution, particularly on commercial and industrial premises, this product suits roof pitches as low as just one degree. It is also specified for use in cyclonic areas when installed accordingly.
Metlok 700® VG4 can also be used as a stylish wall cladding solution for commercial, industrial, warehousing, and rural buildings.
Manufactured in a continuous roll, this sheeting is custom-cut to specifications. The sheeting can be clip-fixed to battens using Metlok 700® Dekclips.
Perfect for:
- Commercial & industrial applications
- Concealed fix system
- Designed for thermal expansion and contraction
- Ideal for long runs
- Roof pitch as low as 1 degree
Technical Specifications
Profile
Standard sheet widths
Available lengths
Material thickness
Minimum roof pitch
Australian standards
Maximum end spans
Metlok® 700 Data Sheet
Download PDFMaterial Options
What makes COLORBOND® steel special?
Key benefits:
- Wide colour range
- Superior corrosion resistance
- 15 to 36 year product warranty*
- UV-resistant coating
- No need for repainting
- Australian-made by BlueScope® Steel
What is ZINCALUME® steel?
Key benefits:
- Exceptional corrosion-resistance
- Excellent longevity in most conditions
- Park/picnic area shading
Complete System
Roofing Sheets
- Roofing sheets in your chosen material and length
- Calculate your requirements based on your roof area plus 10% allowance for wastage
Fixings & Fasteners
- Roofing screws (weather sealed)
- Hex Head Type 17 Screw with EPDM Washers for timber supports
- Allow 8-10 screws per square metre of roof area
Ridge Capping & Flashings
- Ridge capping for rooftop peaks
- Barge flashings for gable ends
- Apron flashings for wall junctions
- Valley gutters for roof valleys
Guttering System
- Quad or fascia gutters (half round or flat back)
- Downpies & brackets
Support Structure
- Purlins/battens (if not existing)
- Appropriate spacing to suit the corrugated profile
IMAGE CREDIT: https://colorbond.com/
Photo by: Matthew Moyes | Built by: Phil Kelleher Homes
DIY Installation
Tools You’ll Need
- Cordless drill with hex bits
- Measuring tape and chalk line
- Metal-cutting circular saw or angle grinder
- Ladder or scaffolding
- Safety equipment (harnesses, anchors, non-slip footwear, eye protection)
Safety First
Frequently Asked Questions
This product is perfect for long runs or large roofs. These are metal roofs that use a single large sheet (or a small number of large sheets) of custom-designed metal for each slope of the rooftop, as opposed to many overlapping smaller sheets. The benefits this delivers include a much longer lifespan, the ability to withstand extreme weather conditions, and a resulting roof that is impervious to water leakage that it would otherwise be vulnerable to at the seams.
Roofmart also supplies LOKSEAL™ – a joining and sealing system for Trimclad® roofing, which is a cost-effective and easy to install option for long length roof spans.
Metlok 700® features a raised rib profile that arises from flat pans for the effect of bold, straight lines on the roof.
A superior long-run metal roof made from Metlok 700® can last up to between 40 and 70 years if installed according to specifications and appropriately for its climate (including cyclonic conditions).
COLORBOND® Steel is backed by the Bluescope Steel Warranty for 15 to 36 years. Exact coverage varies by location, product type and other factors. See here for more information.
ZINCALUME® steel is silver-coloured, and features a protective aluminium-zinc-silicon alloy coating. It can be painted.
COLORBOND® is pre-painted ZINCALUME® available in a wide array of colours.
You’ll need to calculate your roof’s total area (via measurement – tip: sketch the roof, break it into smaller sections, measure and add these up), determine the area of each of your chosen roofing sheets, and divide the entire roof area by the area of a single sheet. Round up and add a 10% allowance for overlap/wastage/error.
ZINCALUME® corrugated roofing comes in a standard grey colour; this sheeting can be painted. COLORBOND® corrugated roofing is available in 22 steel core classic and contemporary colours. There are also 6 colours available in a premium matt finish.
It’s simple! Just get in touch with us to get the ball rolling.
